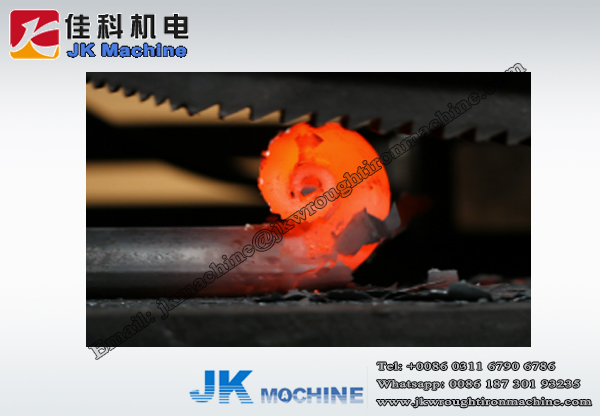

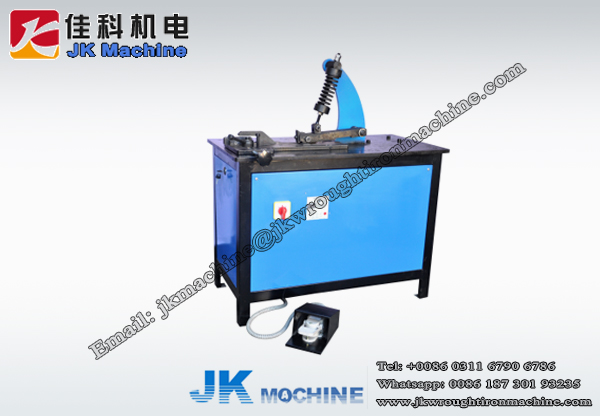

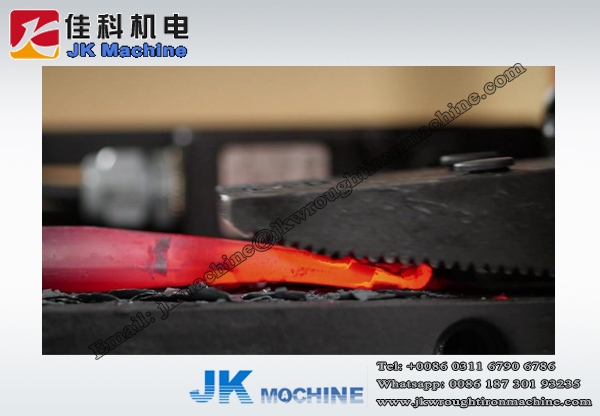

This machine is our latest R&D specializing in make rolls. It can make different specifications of flat iron, square steel, round steel (fishtail) tightly into volumes after heater, like a flowr core shape formation. Greatly improve the elegant art style of iron. It's the indispensable mechanical equipment.

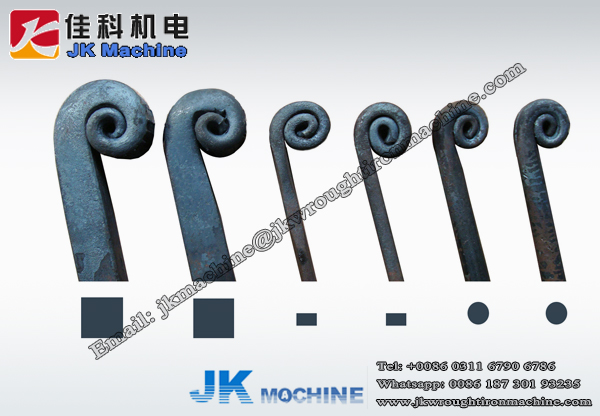

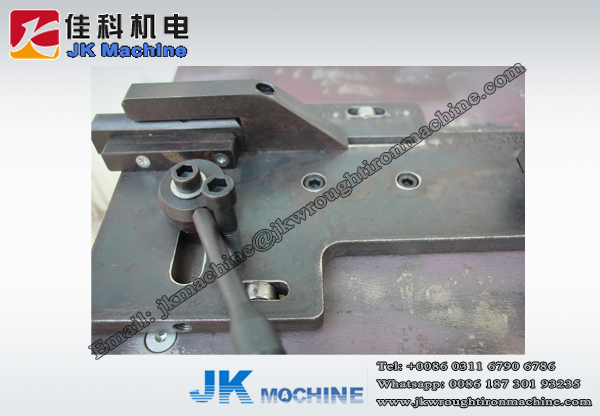

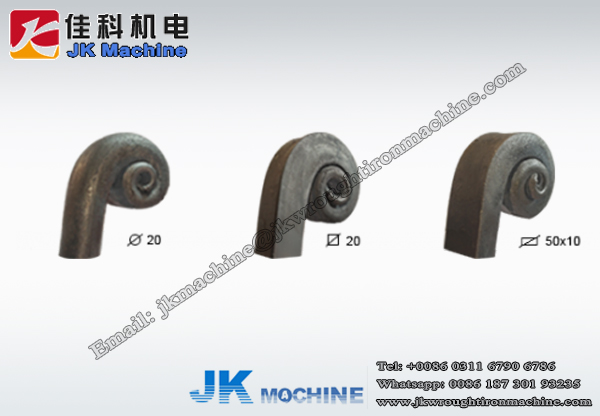

Inquire NowThis machine is our latest R&D specializing in make rolls. It can make different specifications of flat iron, square steel, round steel (fishtail) tightly into volumes after heater, like a flowr core shape formation. Greatly improve the elegant art style of iron. It's the indispensable mechanical equipment. This machine is equipped with three kinds of molds, can be rolled into φ30, φ40, φ50 diameter size of the volume flower. Basically meet the production of iron art making in different specifications of flat iron, square steel, round steel, square tube, pipe (fishtail) end coil requirement. The machine is convenient and quick to replace the mold, easy to ajust, easy to operate. High quality coil, and consistency, and high production efficiency.
Download Document1. Simple operation, low failure rate, power saving.

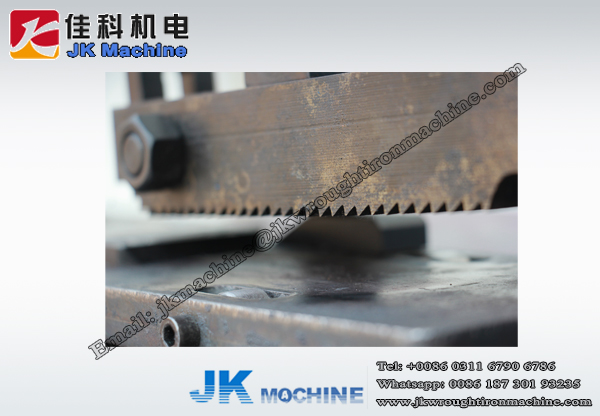

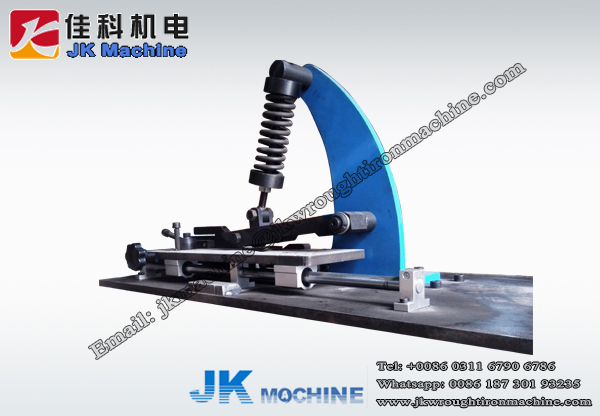

2. The mould structure is provided with a guide wheel, made the feed resistance is greatly reduced, successful rolling.
3. This machine is labor saving, high production efficiency.
4. High quality coil, and consistency. It can produce in batch.
| Main Performance | |||
| Working Ability | Flat Iron | ≤ 30*8 mm | |
| Square Steel | ≤ 16*16 mm | ||
| Round Steel | ≤16*16 mm | ||
| Processing Speed | 180-200 PCS/H | ||
| Motor Performance | 1.5 KW | ||
| Voltage | 380 V | ||
| Package Performance | |||
| J° Pallets | 1 | ||
| Dimensions of the machine | 1000*500*1200mm | ||
| External Dimensions | 1050*550*1250mm | ||
| Volume | 0.73㎡ | ||
| Net Weight | 200 KG | ||
| Gross Weight | 240 KG | ||
