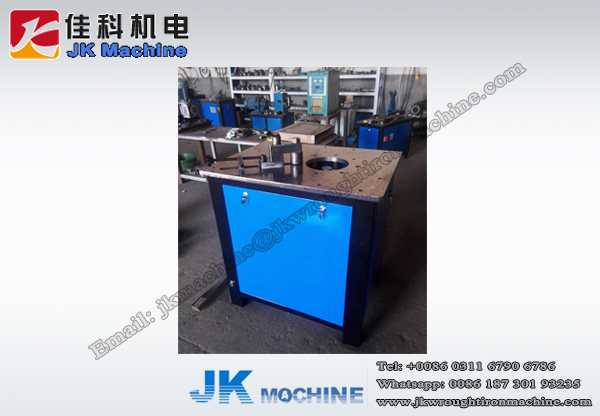

JK-DW30 Program Controlled Pattern Bender Machine has program controlled as PC, This machine is designed from JK-DW16 Machine, It's more suitable for large products, such as 30 mm square tube or 20 mm square steel, it can be make 6 m of material porcessed into S stype, apply to the gate design, product appearance beautiful, welcomed by many customers.
Inquire NowJK-DW30 Program Controlled Pattern Bender Machine has program controlled as PC, This machine is designed from JK-DW16 Machine, It's more suitable for large products, such as 30 mm square tube or 20 mm square steel, it can be make 6 m of material porcessed into S stype, apply to the gate design, product appearance beautiful, welcomed by many customers.
Download Document1. Curved flower timing and positioning automic control of the machine, to ensure the consistency of product processing, reduce working time and labor intensity.

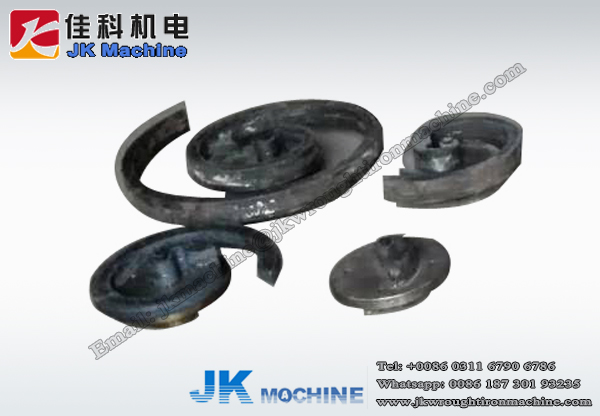

2. Die novelty designed, surface smooth, mold our spread a large space, convenient for operation, can produce big more large flower type.
3. The latest development of double-layer mould processing square tube, pipe etc., Smooth surface without distortion.

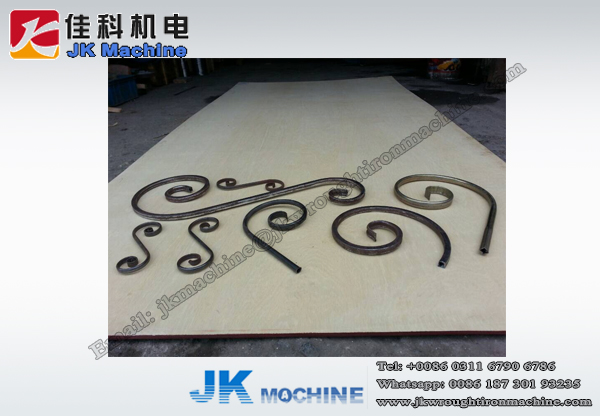

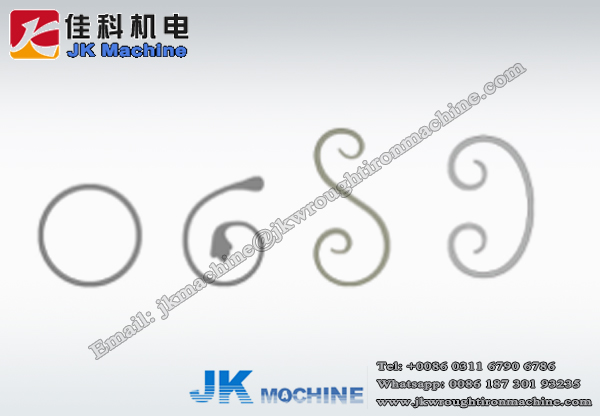

4. Comprehensive function, it can bend all kinds and specification of C, P and S patterns.
| Main Performance | |||
| Working Ability | Flat Iron | ≤ 80*20mm | |
| Square Steel | ≤ 20*20 mm | ||
| Square Tube | ≤ 30*30 mm | ||
| Round Pipe | φ30 mm | ||
| Motor Performance | Power | 5.5 KW | |
| Voltage | 380 V | ||
| Package Performance | |||
| J° Pallets | 1 | |
| Dimensions of the machine | 900*1400*1050mm | ||
| External Dimensions | 1000*1500*1800mm | ||
| Volume | 2.7 ㎡ | ||
| Net Weight | 480 KG | ||
| Gross Weight | 550 KG | ||
