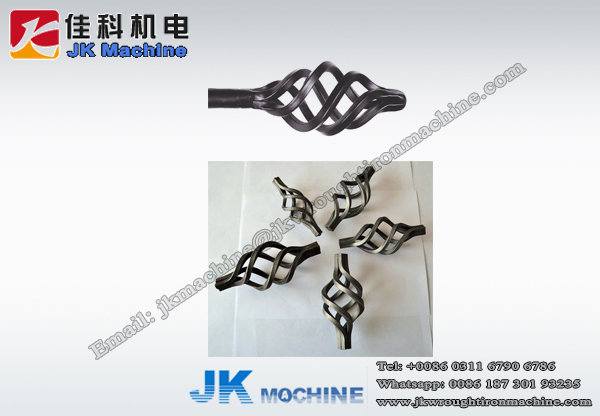

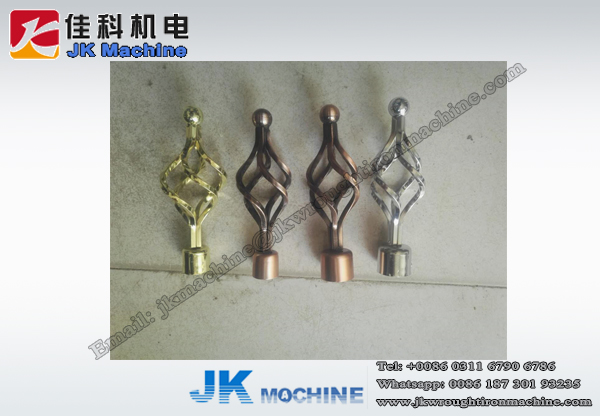

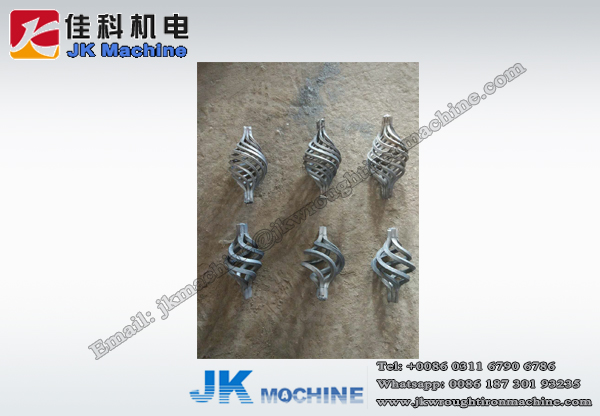

For this machine, it not only have the function of JK-DN25B and JK-DN25C, it also have new functions, which can be make basket with 8 pieces. This is the newly product, It will show that the product is more upscale and beautiful.

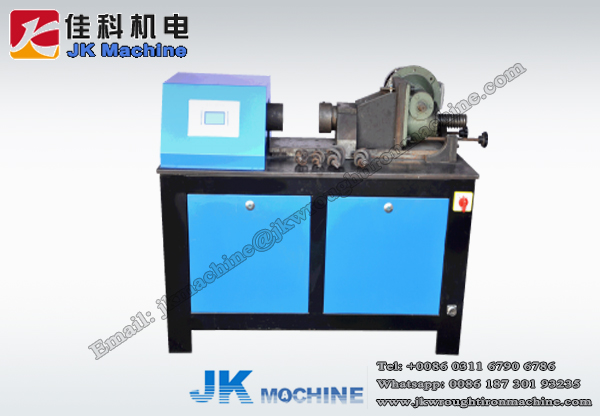

Inquire NowThis machine is developed from JK-DN25B Program Controlled Torsion and Twist Machine. For this machine, the basket twisting mechanism can be exchanged with the tailstock of the original machine. According to the users needs can be customized to the basket twisting mechanism of hte other material specifications. The blue flower mechanism has the advantages of simple installation, convenient operation, labor saving, high efficiency. For this machine, it not only have the function of JK-DN25B and JK-DN25C, it also have new functions, which can be make basket with 8 pieces. This is the newly product, It will show that the product is more upscale and beautiful.

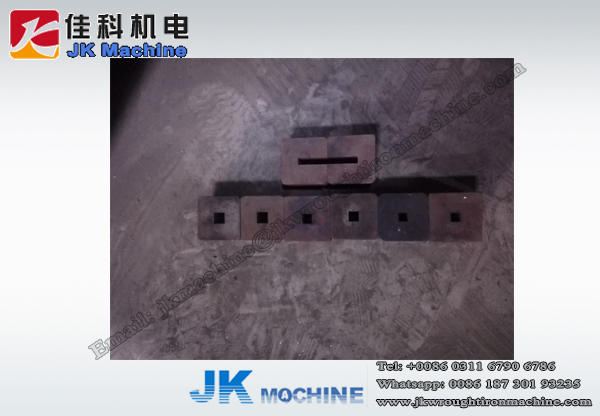

Download Document1. 4 sets of square steel molds: 12*12mm, 14*14mm, 16*16mm, 20*20mm.
2. 3 sets of flat iron molds: 16*5mm, 20*6mm, 30*8mm

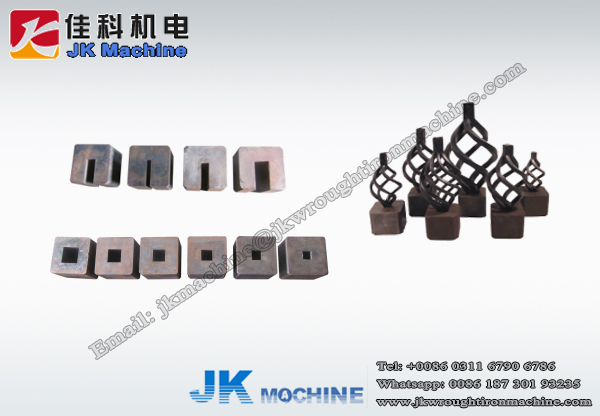

3. 4 sets of basket molds:
1). 2 kidns of 12*12mm diameter were
2). 2 kinds of 16*16mm diameter were
| Main Performance | |||
| Working Ability | Torsion | Flat Iron | ≤ 30*8 mm |
| Square Tube | ≤ 25*25 mm | ||
| Round Steel | φ16 mm | ||
| Square Steel | 16*16 mm | ||
| Twist Basket | Squar Steel | 6*6,7*7 8*8,10*10 mm | |
| Round Steel | φ6/7/8/10 mm | ||
| Material Twist Length: | 200-800 mm | ||
| Motor Performance | Power | 4+2.2 KW | |
| Voltage | 380 V | ||
| Package Performance | |||
 | J° Pallets | 1 | |
| Dimensions of the machine | 1360*800*1100mm | ||
| External Dimensions | 1410*850*1150mm | ||
| Volume | 1.38 ㎡ | ||
| Net Weight | 570 KG | ||
| Gross Weight | 650 KG | ||
