This machine is developed from JK-DN25B Program Controlled Torsion and Twist Machine. For this machine, the basket twisting mechanism can be exchanged with the tailstock of the original machine.
Inquire NowThis machine is developed from JK-DN25B Program Controlled Torsion and Twist Machine. For this machine, the basket twisting mechanism can be exchanged with the tailstock of the original machine. According to the users needs can be customized to the basket twisting mechanism of hte other material specifications. The blue flower mechanism has the advantages of simple installation, convenient operation, labor saving, high efficiency.

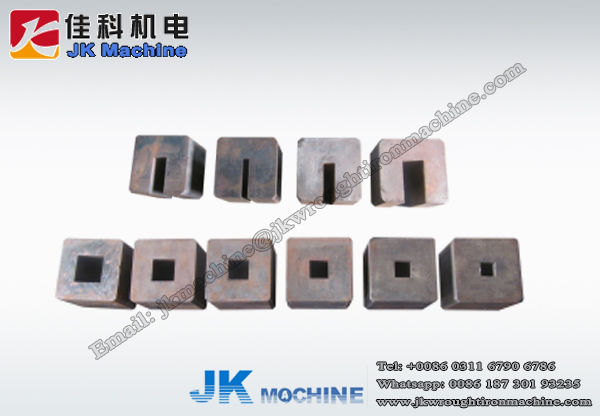

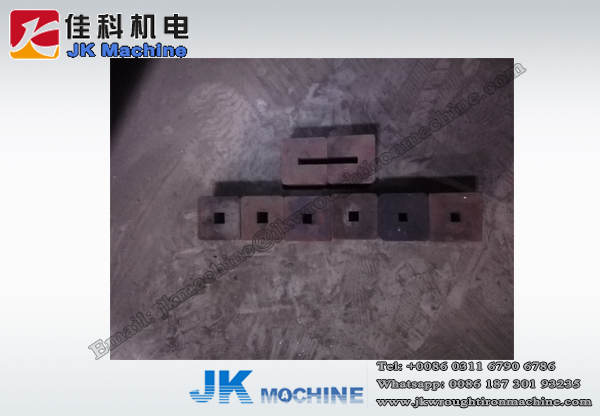

Download Document1. 4 sets of square steel molds: 12*12mm, 14*14mm, 16*16mm, 20*20mm.
2. 3 sets of flat iron molds: 16*5mm, 20*6mm, 30*8mm

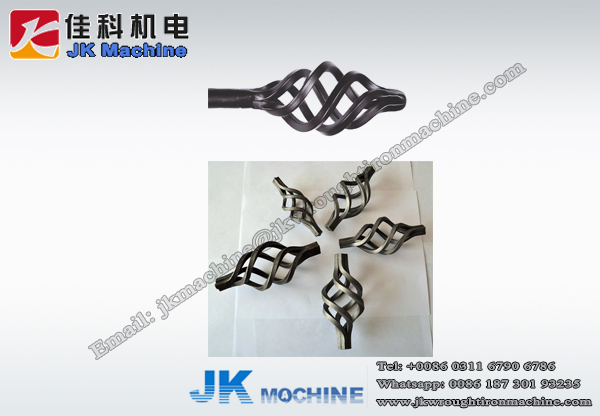

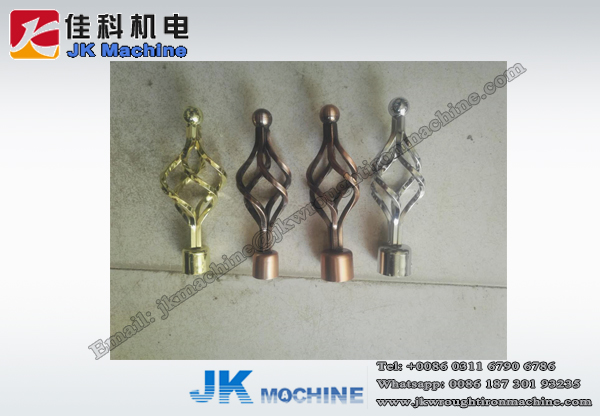

3. 4 sets of basket molds:
1). 2 kidns of 12*12mm diameter were
2). 2 kinds of 16*16mm diameter were
| Main Performance | |||
| Working Ablility | Torsion | Flat Iron | ≤ 30*8 mm |
| Square Tube | ≤ 20*20 mm | ||
| Round Steel | φ16 mm | ||
| Square Steel | 16*16 mm | ||
| Twist Basket | Squar Steel | 6*6,7*7,8*8mm | |
| Round Steel | φ6, 8 mm | ||
| Material Twist Length: | 200-800 mm | ||
| Motor Performance | Power | 3 KW | |
| Voltage | 380 V | ||
| Package Performance | |||
 | J° Pallets | 1 | |
| Dimensions of the machine | 1400*600*1100mm | ||
| External Dimensions | 1450*650*1150mm | ||
| Volume | 1.09 ㎡ | ||
| Net Weight | 480 KG | ||
| Gross Weight | 550 KG | ||
