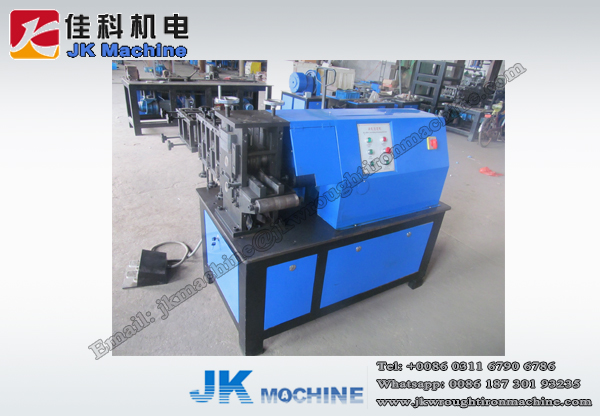

This machine can make patterns in the square tube's four corners, can make into railing of the stairs used pipe. Running smoothly, safe and reliable. Applicable to buildings, tourist attrations and home decoration and other industries.
Inquire NowThis machine can make patterns in the square tube's four corners, can make into railing of the stairs used pipe. Running smoothly, safe and reliable. Applicable to buildings, tourist attrations and home decoration and other industries.
Download Document1. The user can set the processing speed according to the material and size in the ranges.
2. This machine has modular design, sophisticated processing, beautiful appearance, easy assembly and dis-assembly, easy to operate.

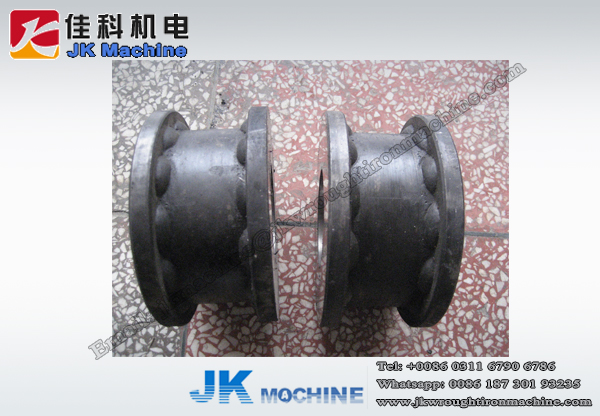

3. Has many embosing molds, using the combination method, one mold used for many materials, convenient replacement and can automaticaly adjust the core, long service life, high working efficiency. The machine has good processing performance, and is provided with a levelling and straightening device, which enable the rolling material to be straight and beautiful.

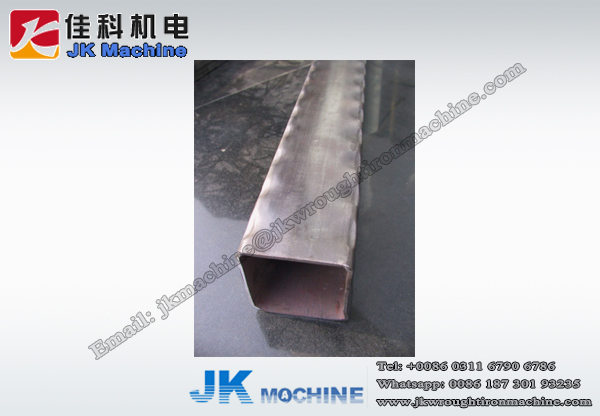

4. The machine has 1 set of square tube mold, can made 20-70 mm suqare tube compressed four corners into flower. Use of advanced reducer, smooth operation, safe and reliable, long using life.
| Main Performance | |||
| Working Ability | Square Tube | ≤75*75 mm | |
| Rolling Speed | 600 M/H | ||
| Motor Performance | Power | 4 KW | |
| Voltage | 380 V | ||
| Frequency | 50 HZ | ||
| Package Pefrormance | |||
 | J° Pallets | 1 | |
| Dimensions of the machine | 1400*1280*1300mm | ||
| External Dimensions | 1450*1330*1350mm | ||
| Volume | 2.61m³ | ||
| Net Weight | 670KG | ||
| Gross Weight | 700KG | ||
