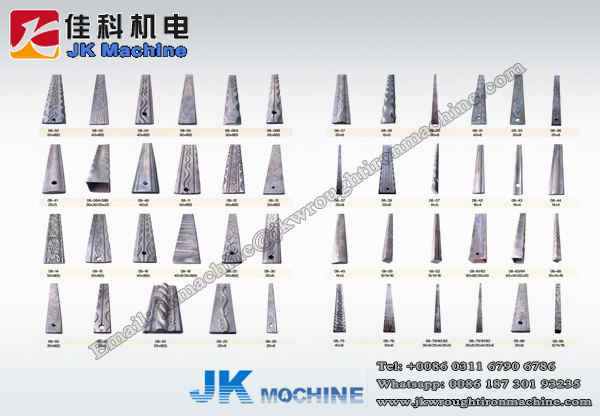

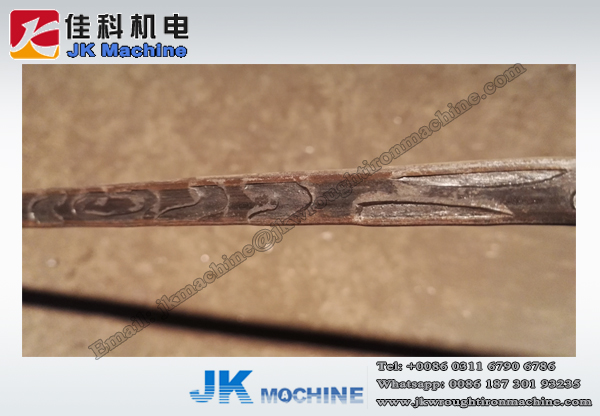

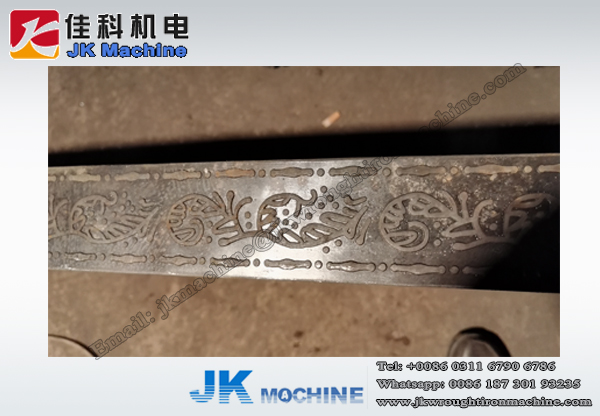

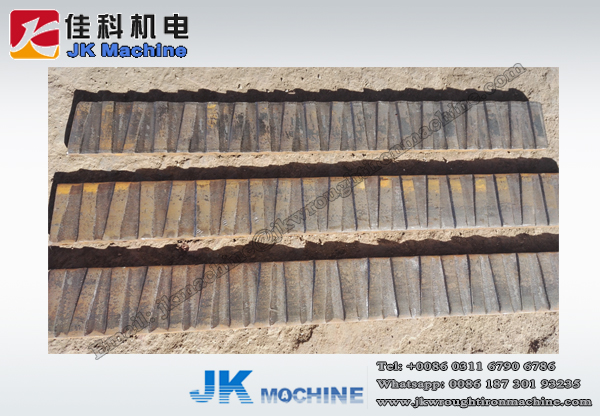

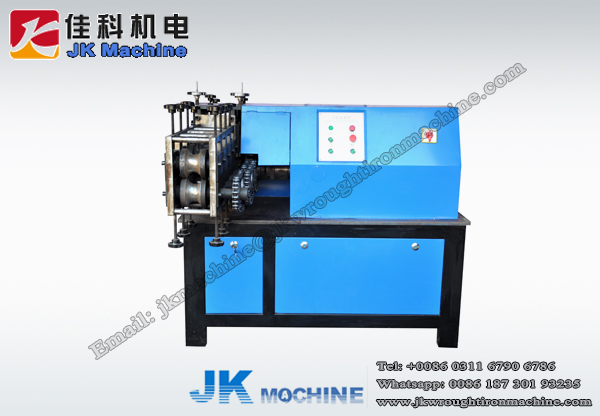

This machine can make patterns in the square tube's four corners, can make into railing of the stairs used pipe. Running smoothly, safe and reliable. Applicable to buildings, tourist attrations and home decoration and other industries. Compare with JK-DL60S, it have stronger working ability and power, so it can make more kinds of products. The key point of making different product is the mold, we can according to customer's need make the right mold.
Inquire NowThis machine can make patterns in the square tube's four corners, can make into railing of the stairs used pipe. Running smoothly, safe and reliable. Applicable to buildings, tourist attrations and home decoration and other industries. Compare with JK-DL60S, it have stronger working ability and power, so it can make more kinds of products. The key point of making different product is the mold, we can according to customer's need make the right mold.
Download Document1. The user can set the processing speed according to the material and size in the ranges.
2. This machine has modular design, sophisticated processing, beautiful appearance, easy assembly and dis-assembly, easy to operate.

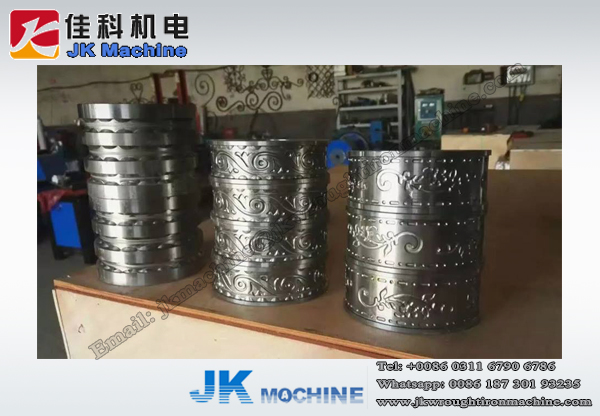

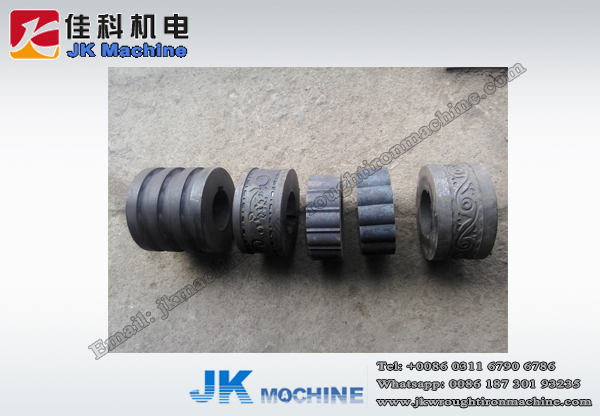

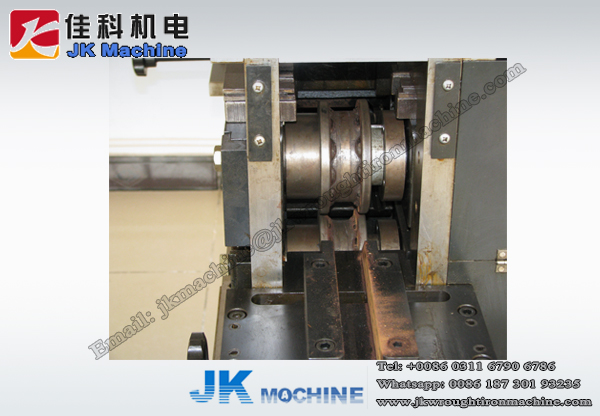

3. Has many embosing molds, using the combination method, one mold used for many materials, convenient replacement and can automaticaly adjust the core, long service life, high working efficiency. The machine has good processing performance, and is provided with a levelling and straightening device, which enable the rolling material to be straight and beautiful.
| Main Performance | |||
| Working Ability | Flat Iron | ≤60*20 MM | |
| Square Steel | ≤30*30MM | ||
| Round Steel | ≤φ 20 MM | ||
| Squre Tube | ≤100*100 MM | ||
| Rolling Speed | 600 M/H | ||
| Motor Performance | Power | 5.5 KW | |
| Voltage | 380 V | ||
| Frequency | 50 HZ | ||
| Package Pefrormance | |||
| J° Pallets | 1 | |
| Dimensions of the machine | 1550*1280*1300mm | ||
| External Dimensions | 1650*1350*1350mm | ||
| Volume | 3.1m³ | ||
| Net Weight | 1000KG | ||
| Gross Weight | 1100KG | ||
